Drone Platform

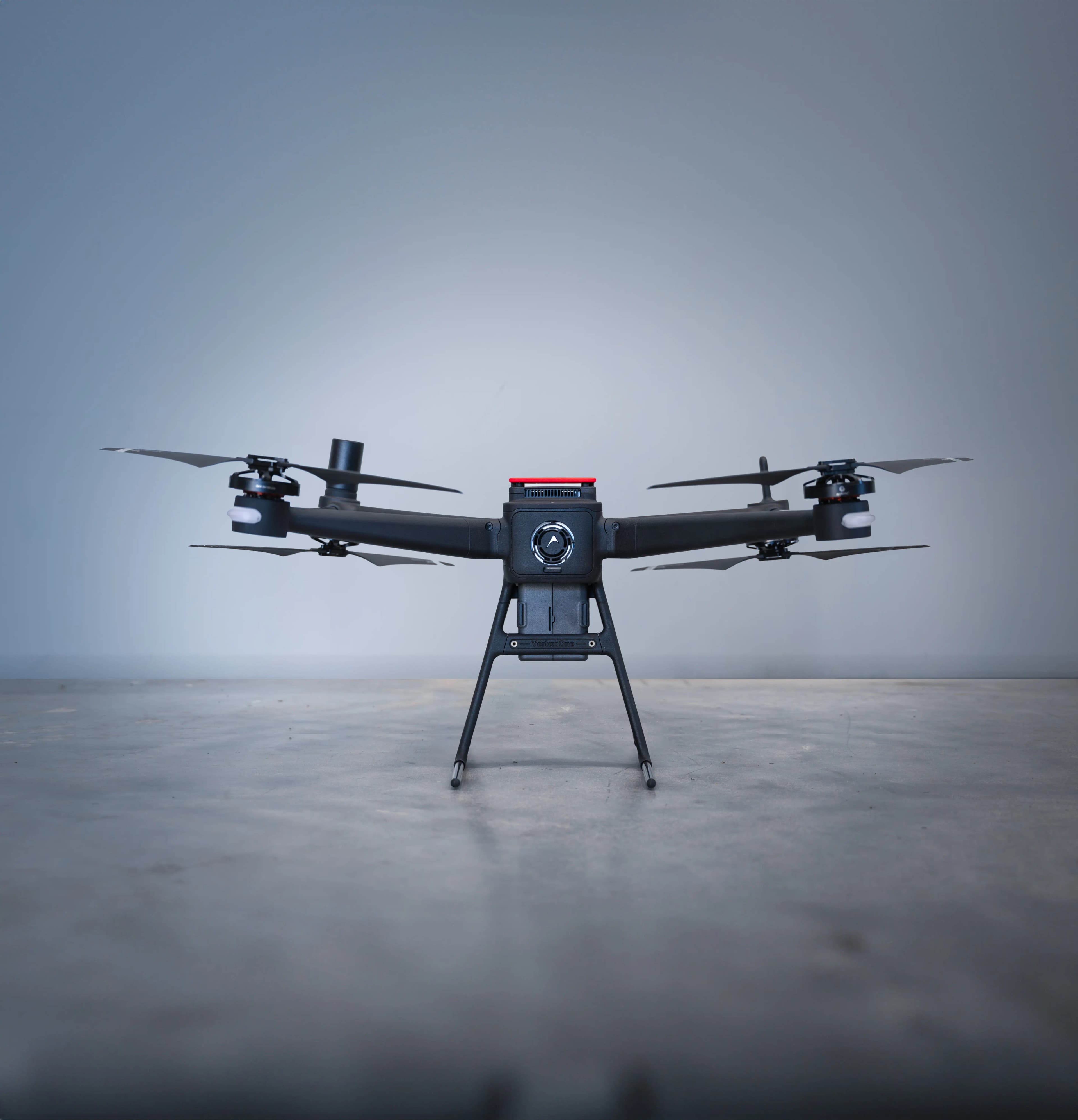

Vertex One

Vertex One

We have been developing drones ever since Avular was founded, pioneering in the world of Unmanned Aerial Vehicles. With over a decade of experience, we have been deploying drones in a wide range of environments. From industrial chimneys to green houses and from construction yards to industrial plants.

Book your
Demo

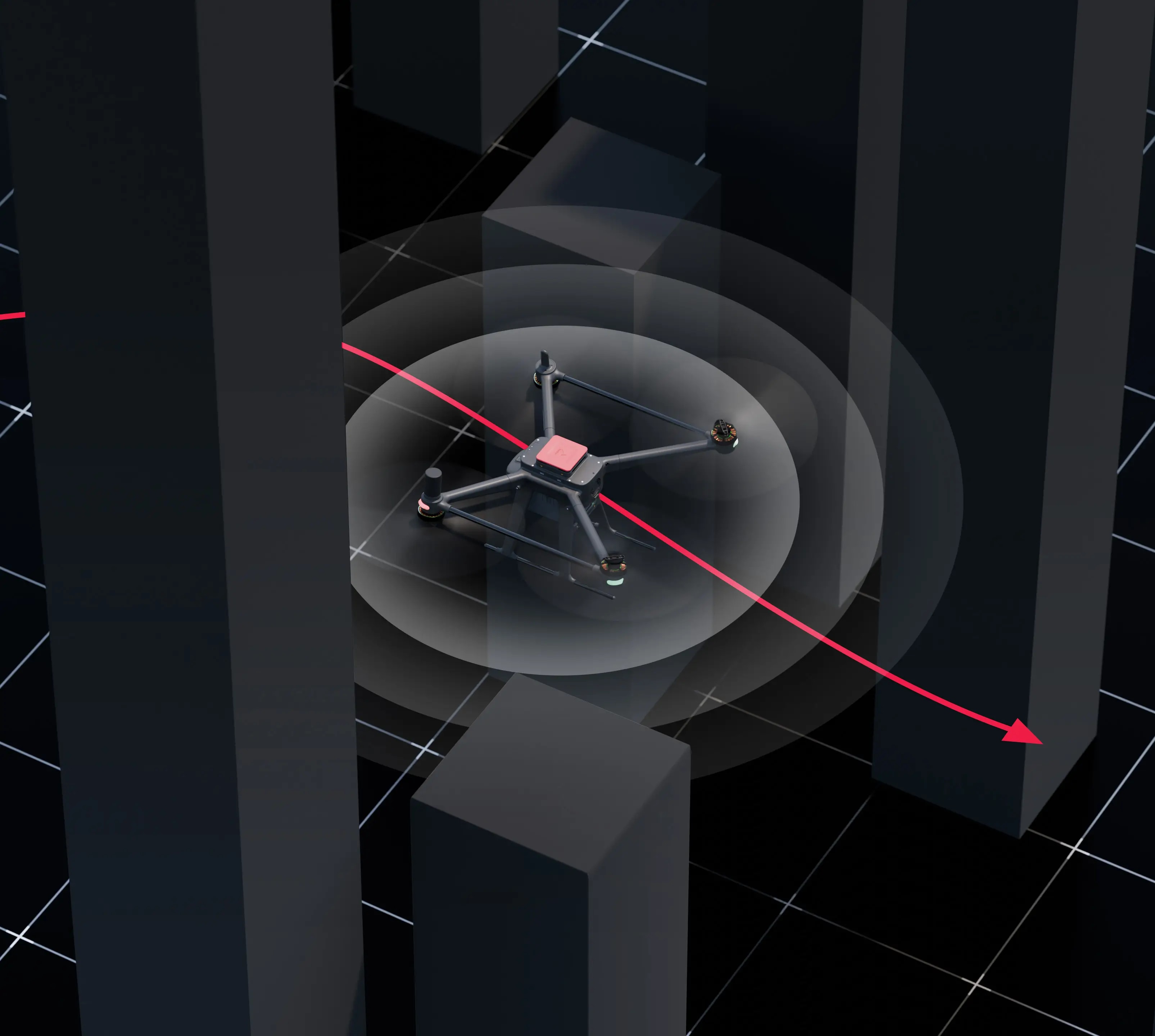

Our drones are built for autonomous data gathering in all our focus domains. Autonomy comes out of the box, as well as various sensors needed for inspections. They are easily customizable and equipped with the Nvidia Jetson Orin NX as high-performance compute platform and Avular’s in-house developed real-time flight controller. The highly customizable platform allows for installing, connecting, and configuring sensors and payloads specific to your use case.

Academic &
Corporate Research


Researchers worldwide struggle with implementing their state-of-the-art research onto robots that are not built for it.

We have made it easy for researchers, teachers, and students to work with autonomous mobile robots through our platforms: the drone platform The Vertex One and the ground robot platform The Origin One.

Custom
Vertex


The Vertex One is the perfect drone to develop new aerial applications with. It enables you to customize the drone as you desire, thanks to the open and accessible way it is built. Tailor the drone platform as required or let us take care of this for you with our implementation services.

Indoor & Outdoor
Flying

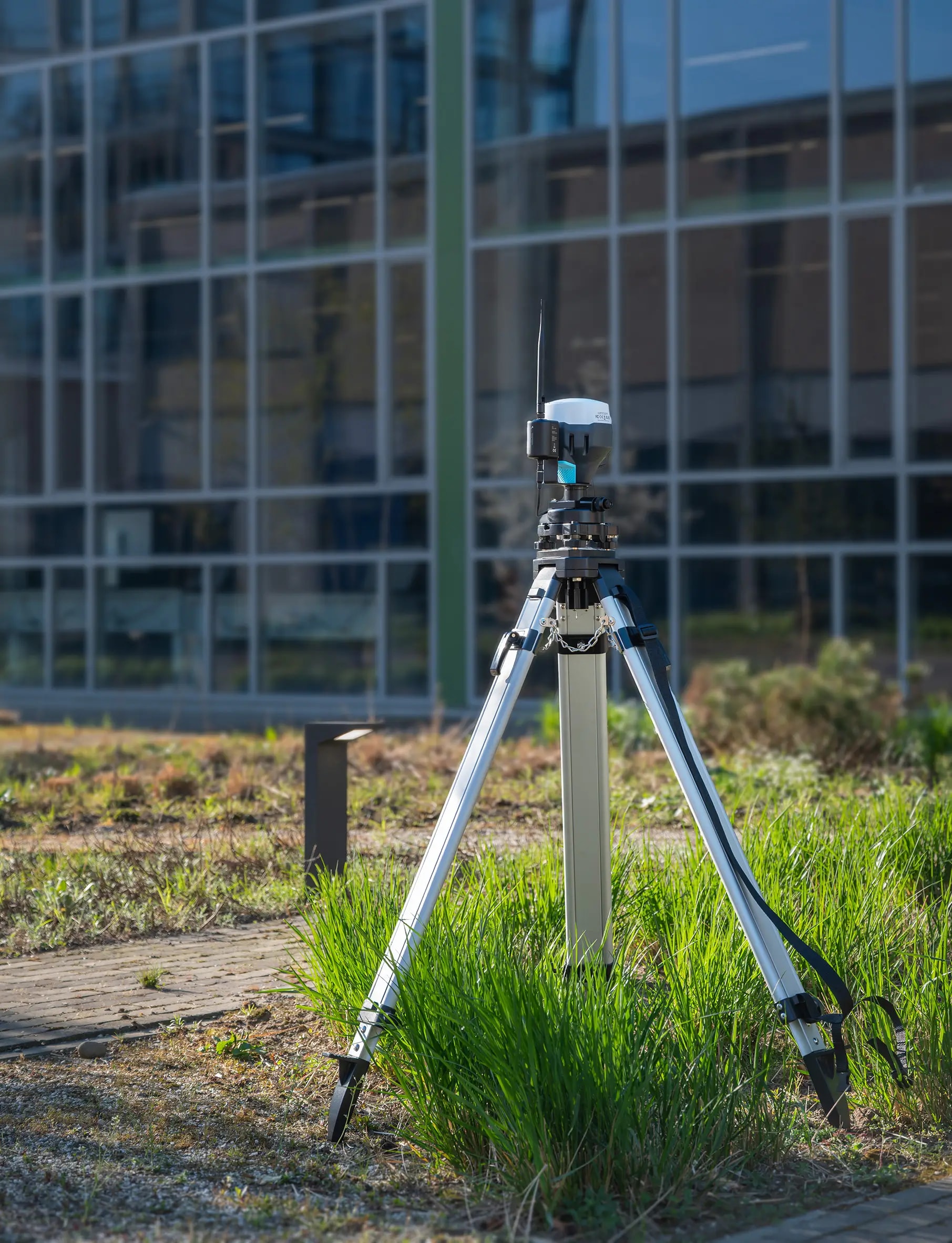

The Vertex One drone platform can fly both indoors and outdoors. For outdoor applications, the drone uses GPS and is optionally equipped with our in-house developed RTK-GPS system.

Modular

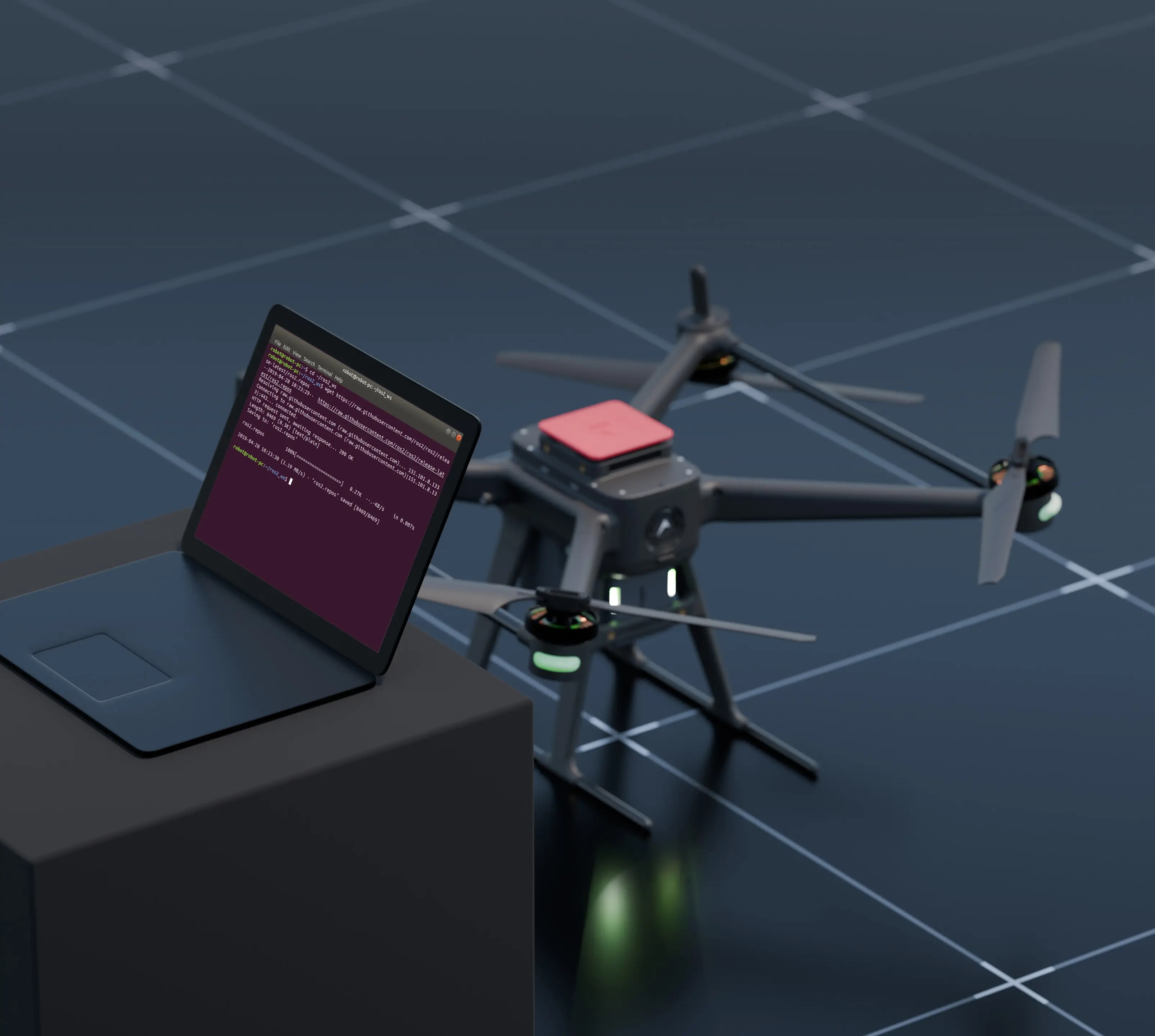

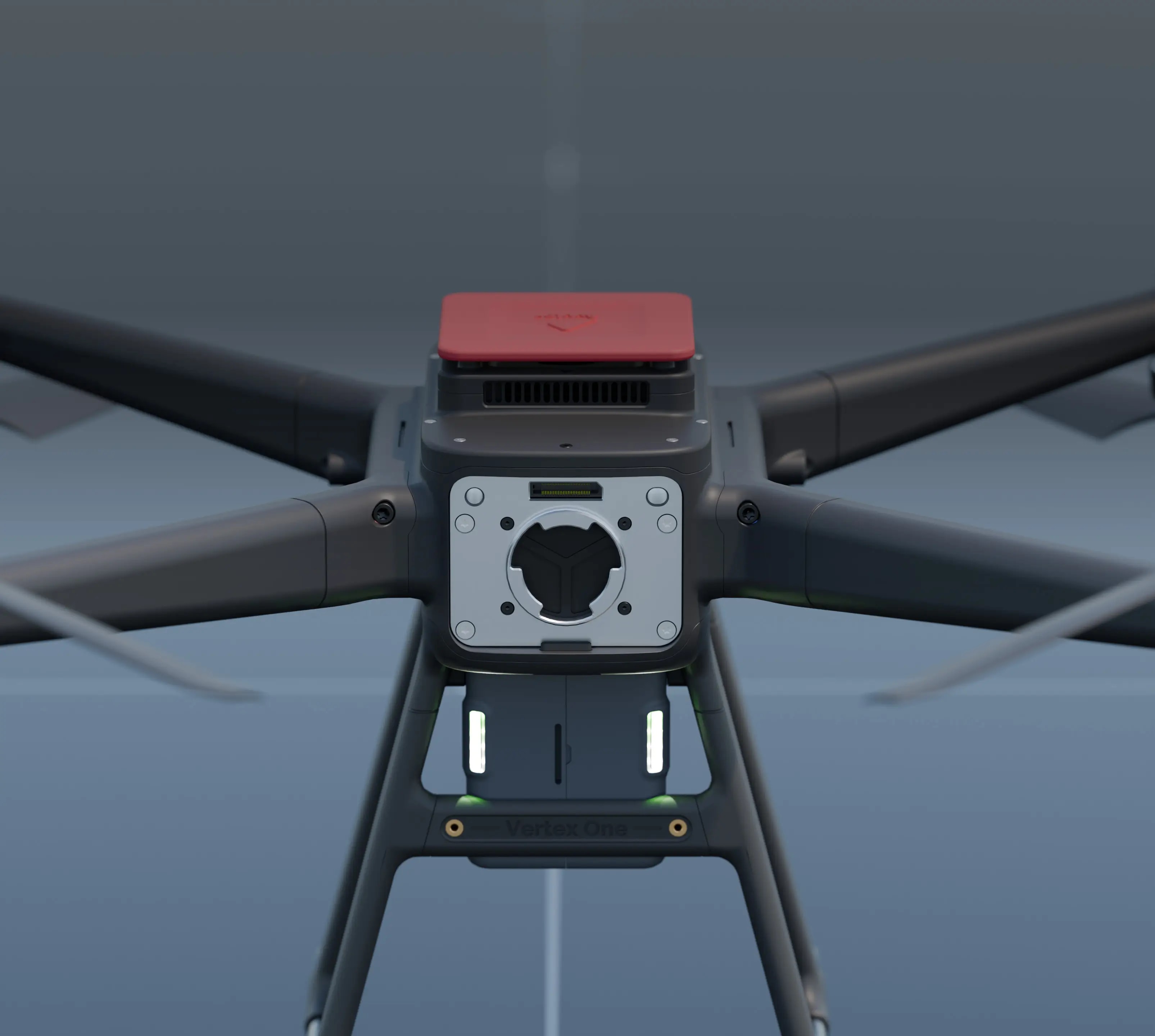

Add functionalities to the drone platform, by integrating sensors and payloads you need for your specific application. The Vertex One is equipped with mounting holes and a range of user I/O and offers compatibility with the Avular Programming Interface (ROS2-Based) allowing for easy integration.

Long
Flight Time


Without
payload, The Vertex
One has a flight
time of 30+
minutes.

Make it
Fold


The Vertex One is easily foldable to create minimal space constraints.

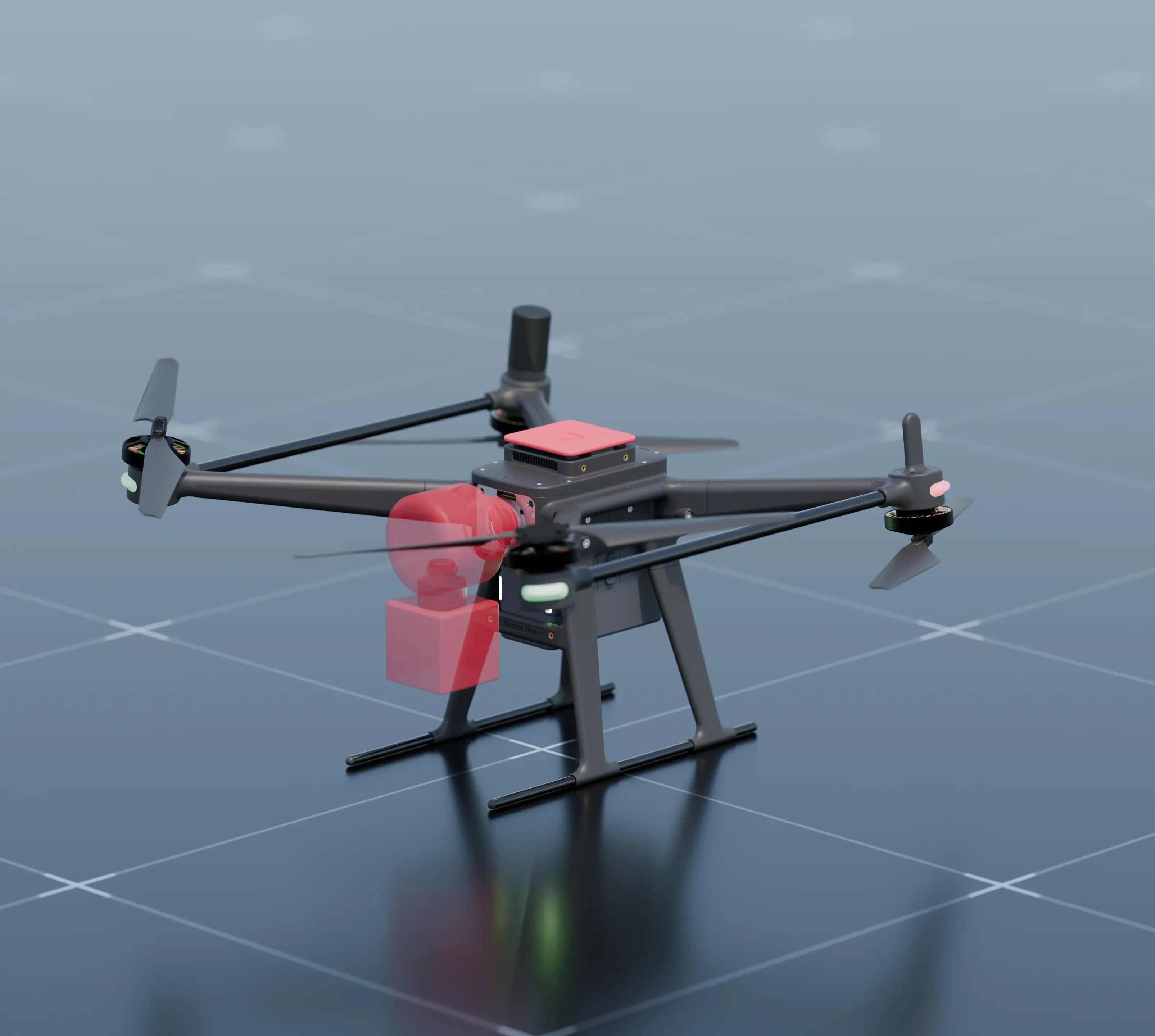

Payload


Maximum standard payload weight of The Vertex One is enough for most common applications and payloads such as powerful imaging cameras, sensors, LiDARs and infra-red cameras.

GPS
Mission support

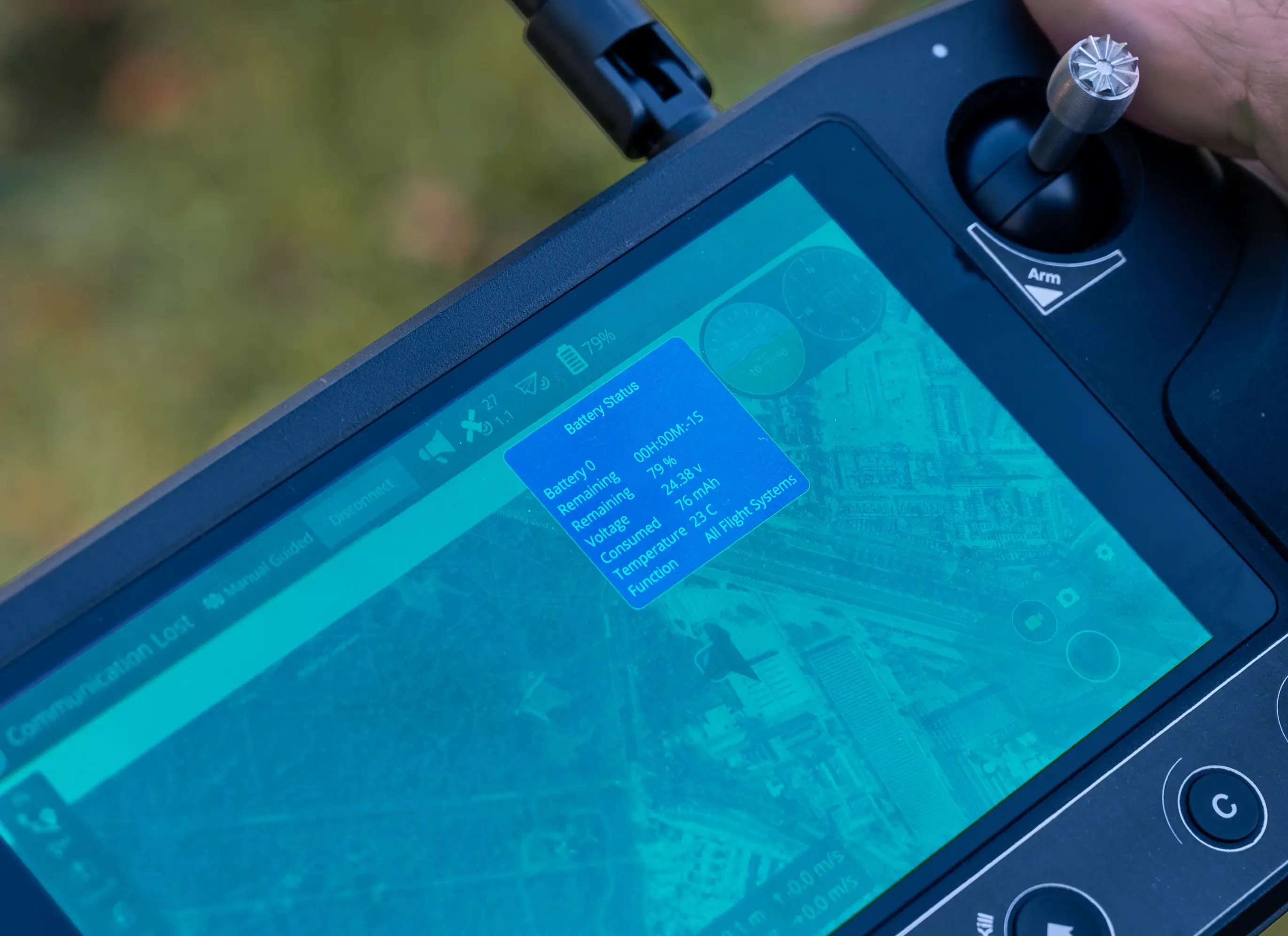

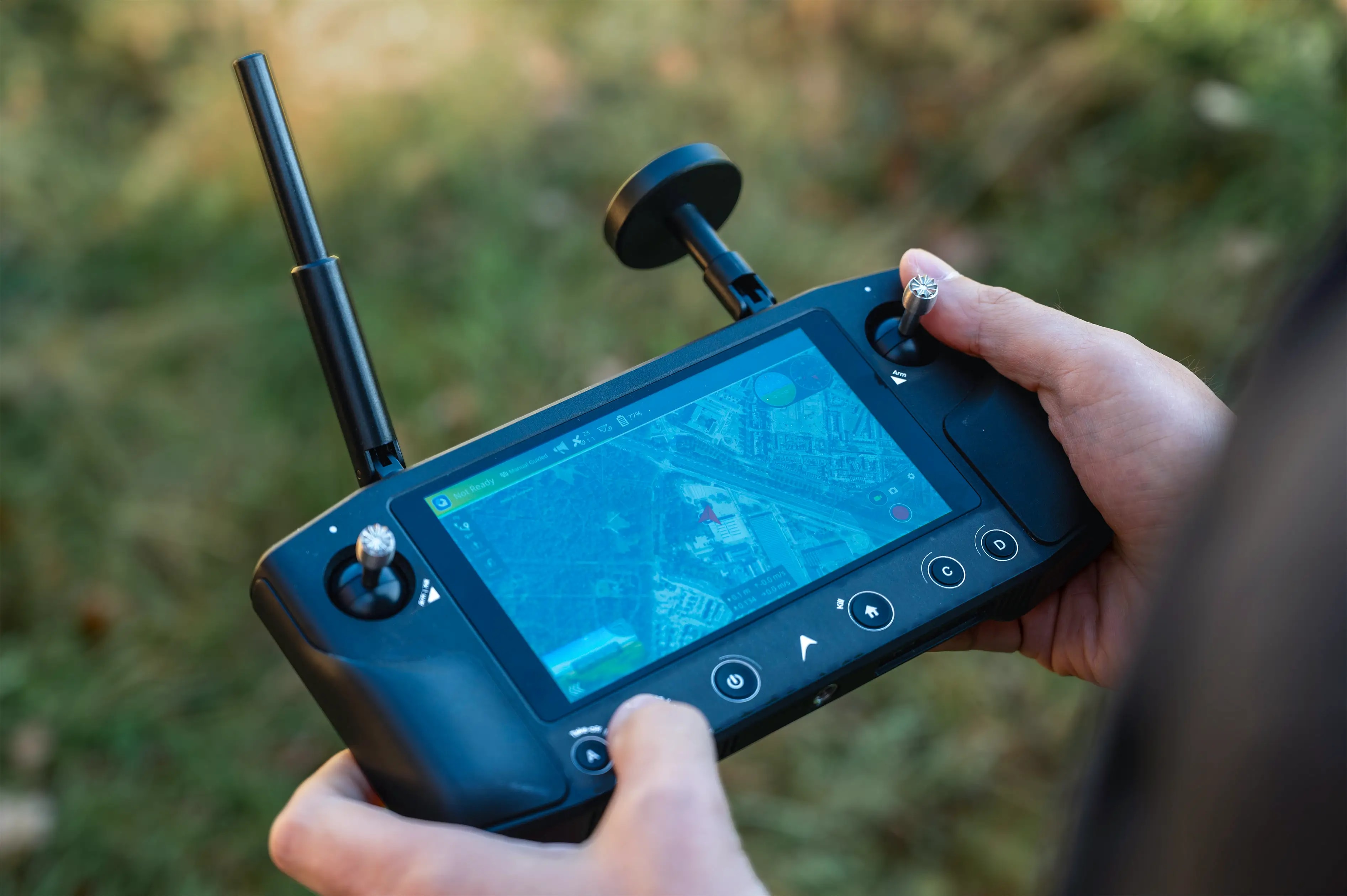

The Vertex One supports GPS-based waypoint missions in an easy-to-use manner. Missions can be constructed using waypoints in longitude, latitude, altitude, and heading. Waypoints can be preprogrammed or fed to the flight controller from the ROS environment running on the compute module.

Safe & Secure
Data


Our products are developed in The Netherlands and use a mostly European supply chain, allowing us to maintain a high level of safety and short communication lines for parts.
Security, from data acquisition to storage on your servers, is of paramount importance to us. We review our hardware and software solutions constantly to bring you the ease of mind and offer the highest level of security in the market.

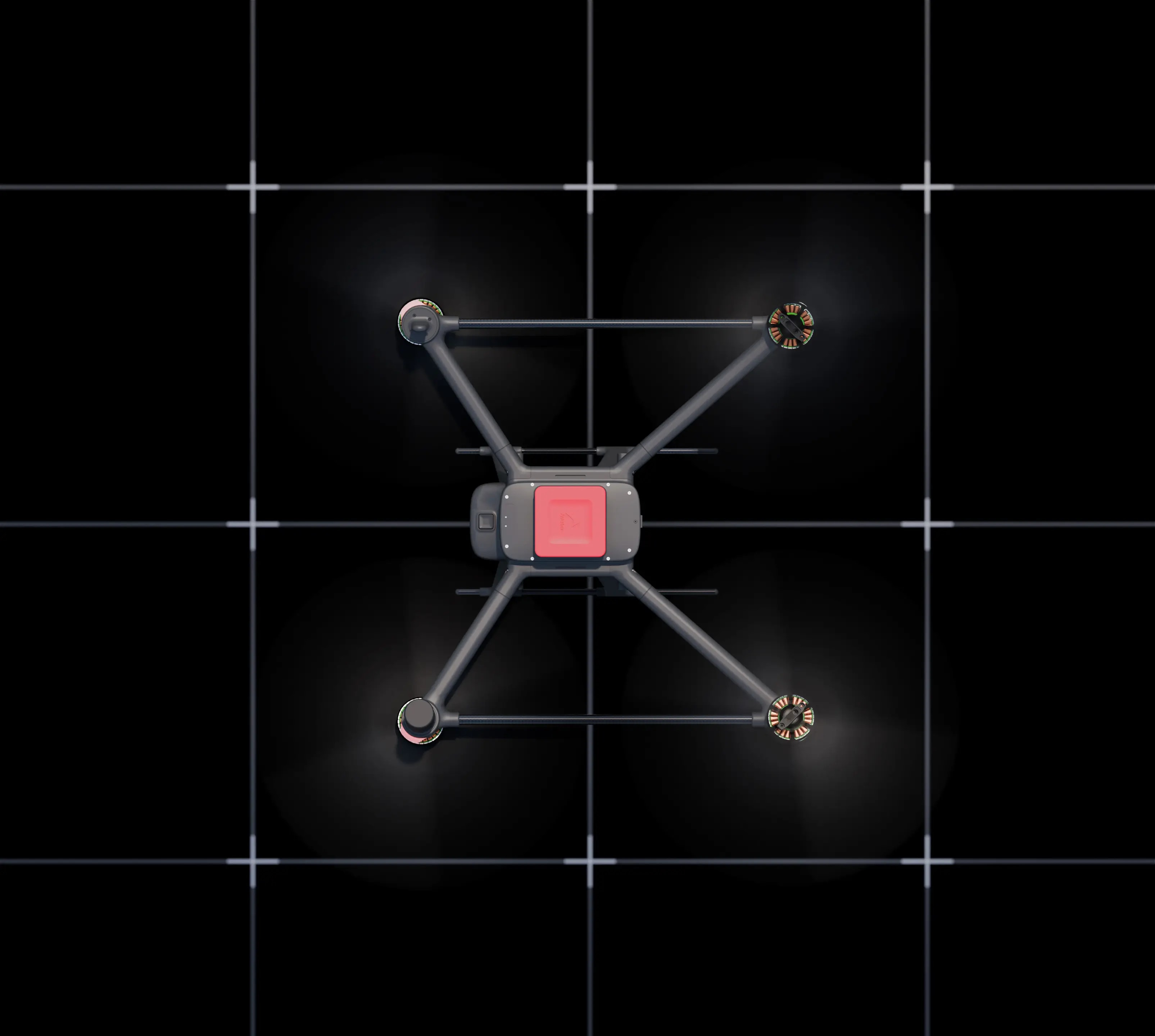

Vertex
PowerPack


Our high-performance Vertex PowerPack includes a battery management system and allows for transport in aircraft hand-luggage so you can easily take it with you, wherever you go.

Wide range of
Connectivity


The Vertex One has 2 x USB 3.2 (USB-C 10 Gb/s), 1 x RJ45 Ethernet and W-Lan I/O.

Technical Specifications - Vertex One
  • Drone Type
    • Multicopter X4, with foldable arms
  • Motors
    • 4 x Avular motor 380W, Brushless DC
  • Propellers
    • Avular - 15 Inch - Carbon - Foldable
  • Body Dimensions (LxWxH) - Flight ready
    • 454 x 450 x 244 mm (incl. GNSS antennas)
    • 450 x 454 x 200 mm (w/o GNSS antennas)
  • Body Dimensions (LxWxH) – Storage and Transport
    • 454 x 250 x 340 mm
  • Diameter with propellers
    • 970 mm
  • Maximum Flight Time (Without Payloads)*
    • 30 min
  • Maximum Payload Weight
    • 1000 g
  • Weight without Payloads (with Batteries)
    • 2800 g
  • Maximum take-off weight
    • 3800 g
  • Onboard Computing Unit
    • Up to Nvidia Jetson Orin NX

Vertex One: Bringing possibilities

Bundels and auxiliaries for the Vertex One. Expand the possibilities with these enhancements for your application.

Stellar Auxiliary


RTK Antenna Bundle
The RTK Antenna and an additional and more accurate external magnetometer enable the most accurate GPS waypoint flying.Powered by a NX series Jetson CPU, combined with an enclosed 13 MP camera, this Vertex bundle is perfect for surveying and aerial imagery.

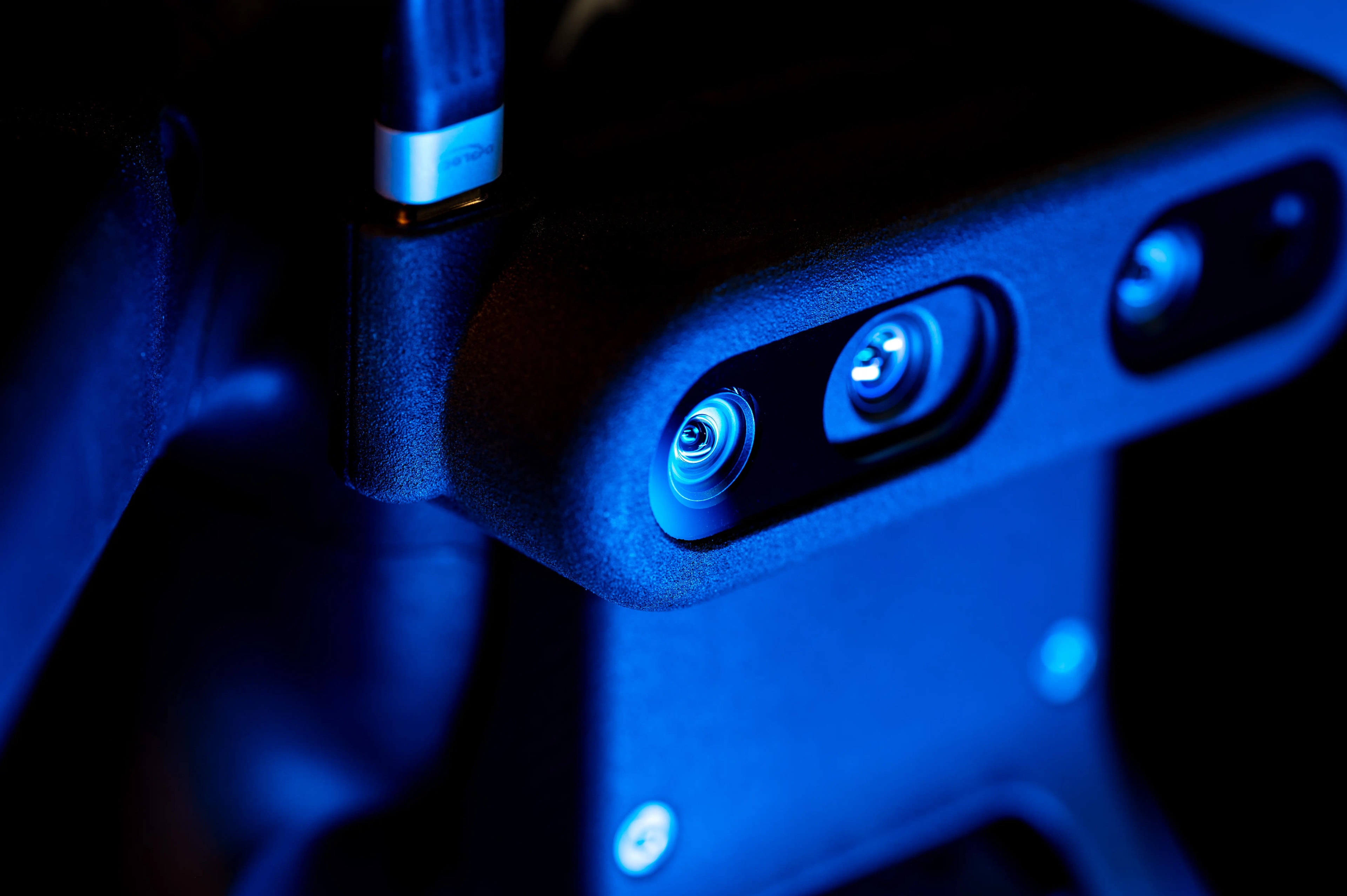

Real Sense Auxiliary


Real-sense sensor Bundle
This Vertex bundle has a highly specialized combination of sensors for low-light surveillance in cramped environments. The Real-sense sensor tracks it height, whilst 4 LiDAR sensors point outward to keep it clear of obstacles. For ease of transport, the arms and landing gear of the Vertex for this bundle are foldable.

Vertex One
Customize it yourself

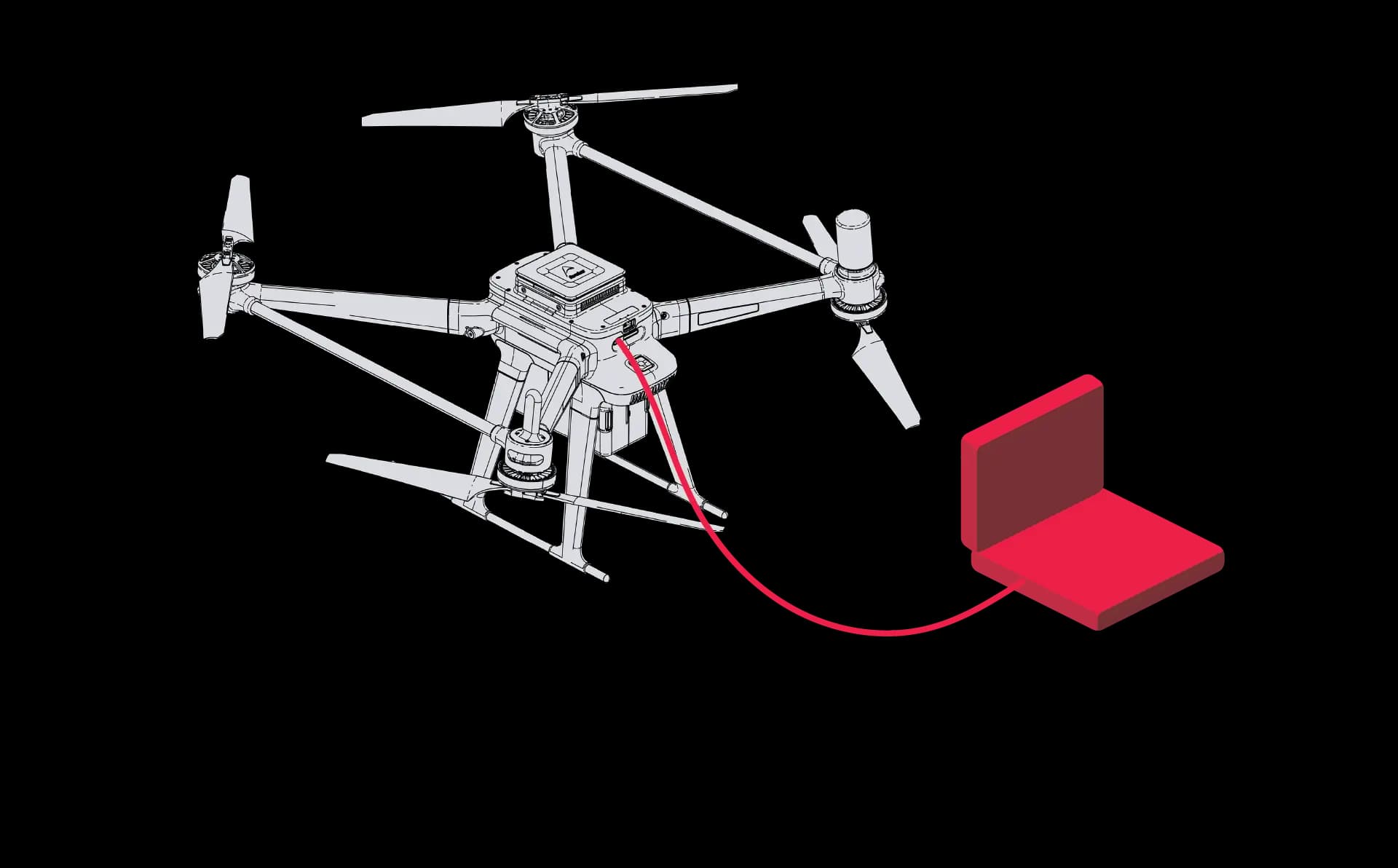

As our drone platform is built in an open and easy-to-customize way, it is easy to use the for your next Academic & Corporate Research project. The Vertex One allows for rapid integration of custom sensors and tools and has a powerful computing platform (NVIDIA Jetson Orin).

Get in contact with Tess Kolkman >
For theAcademic & Corporate ResearchDomain

Let us build a Custom
Vertex One for you


The Vertex One enables quick development of any (autonomous) drone application imaginable, thanks to the open and accessible way it is built.

Let us take care of tailoring the Vertex One for you with our implementation services.

Case Studies

The Vertex One has proven itself in the real world, with drones deployed for different applications.

Agriculture & Landscaping
2023•03•13

Monitoring crop growth and crop health in greenhouses using autonomous drones.

Agriculture & Landscaping
2023•03•13

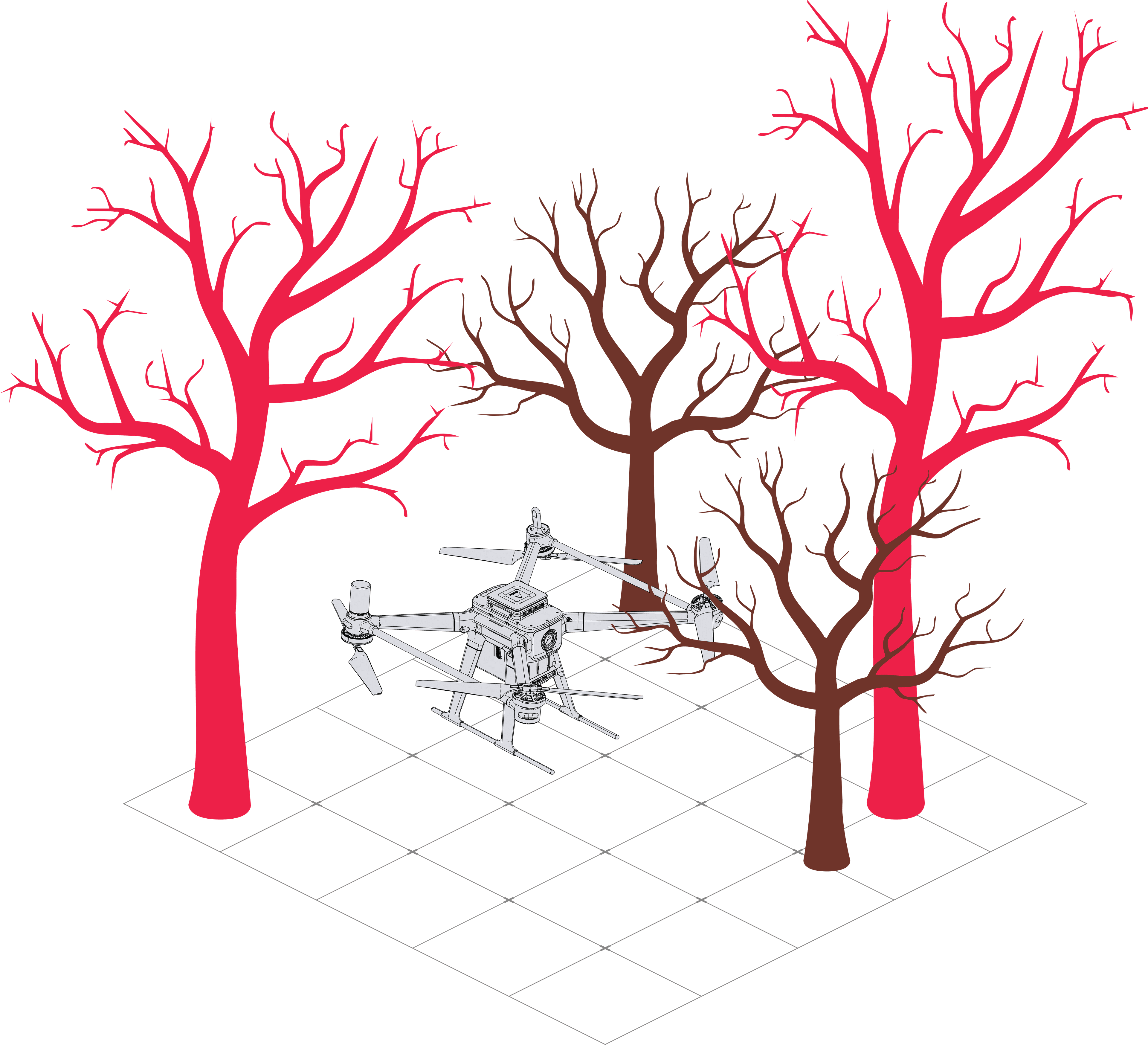

We developed a drone that can autonomously navigate in the forest, between the trees, under the canopy.

Utilities & Industrial Assets
2023•03•13

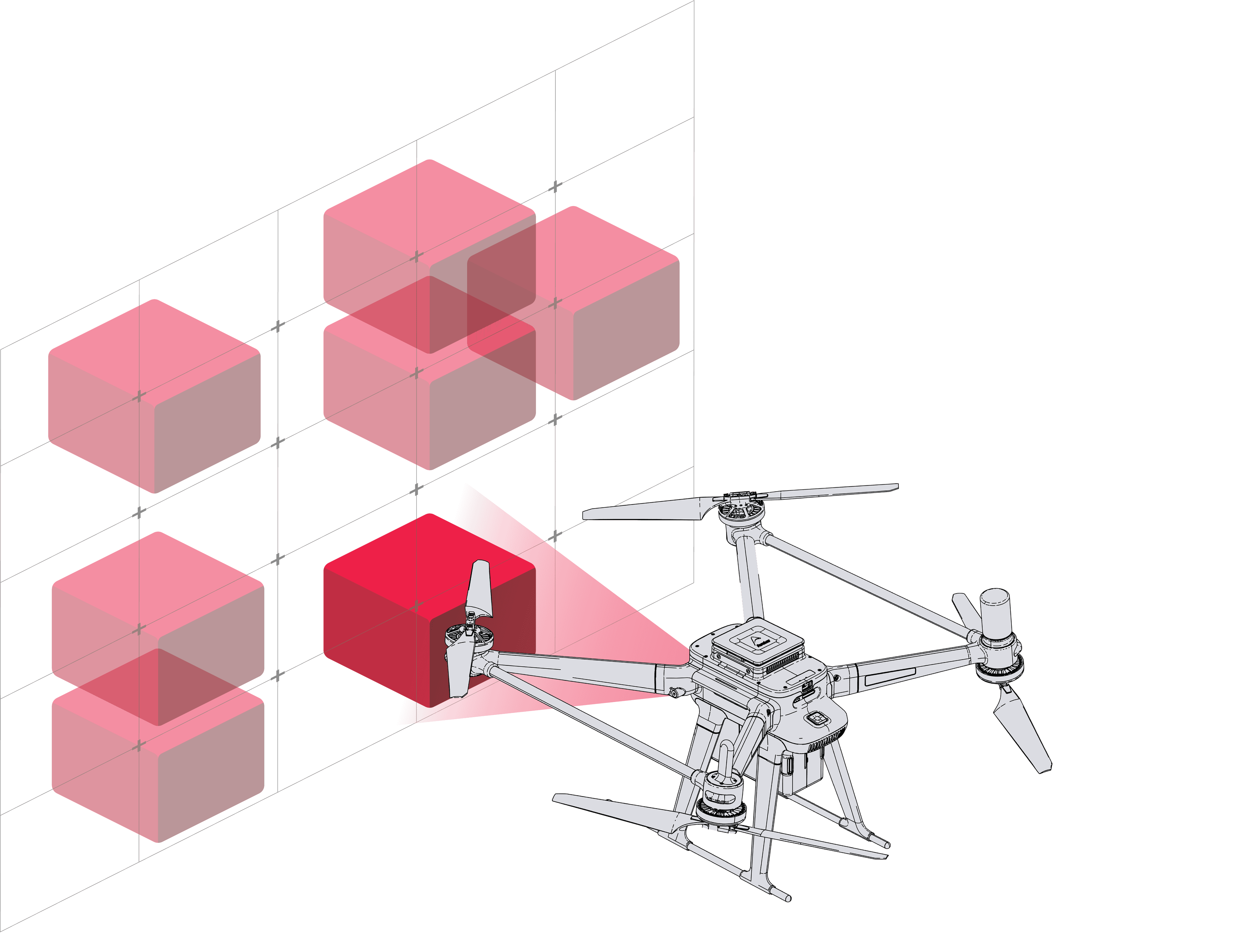

We build a new special purpose drone, designed to fly autonomously making the inspection of industrial chimneys faster, more efficient, and safer.
